Relocatable,
zero separation,
4hr fire protection.

Vaults

With our unique 4hr fire rated, relocatable, zero separation storage vault solutions, we can provide workable solutions to assist in gaining compliance.

  • Purpose built, ready to go

  • A range of sizes to suit your needs

  • Delivered ready for compliance as Type D storage or Type 3 workrooms.

Mini Vault

Model 100SD

Specifications:

24 Litres
Secondary Containment Capacity - Self Bunding

External Dimensions
900mmW x 900mmH x 900mmD

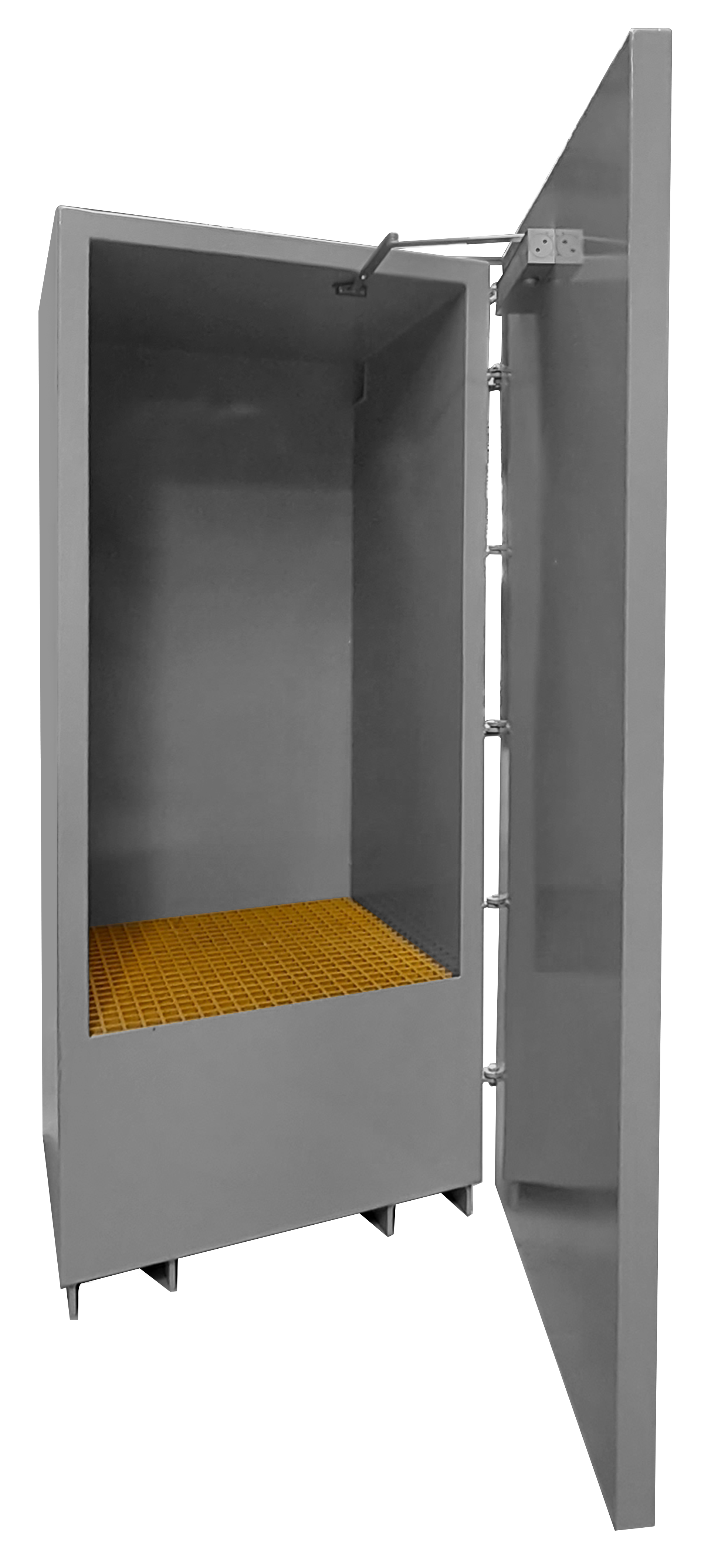

Single Door Vault

Model 200SD

Specifications:

240 Litres
Secondary Containment Capacity - Self Bunding

Internal measurements
730mmW x 745mmD x 1535mmH above grating

External measurements
904mmW x 990mmD x 2205mmH

Weight (approx.)
950kg

Double Door Vault

Model 400DD

Specifications:

500 Litres
Secondary Containment Capacity - Self Bunding

Internal measurements
1600mmW x 730mmD x 1520mmH above grating

External measurements
1880mmW x 990mmD x 2205mmH

Weight (approx.)
1660kg

2.2m Vault

Model 5000DD

Specifications:

2025 Litres
Secondary Containment Capacity – Self Bunding

Internal measurements
2000mmW x 2160mmD x 1600mmH above grating

External measurements
2300mmW x 2350mmD x 2225mmH

Weight (approx.)
3750kg

6m Vault

Model DG 6MHC

Specifications:

5000 Litres
Secondary Containment Capacity – Self Bunding

Internal measurements
5740mmW x 2155mmD x 2270mmH above grating

External measurements
6060mmW x 2430mmD x 2930mmH

Weight (approx.)
10,500kg

Measurements all approximate
